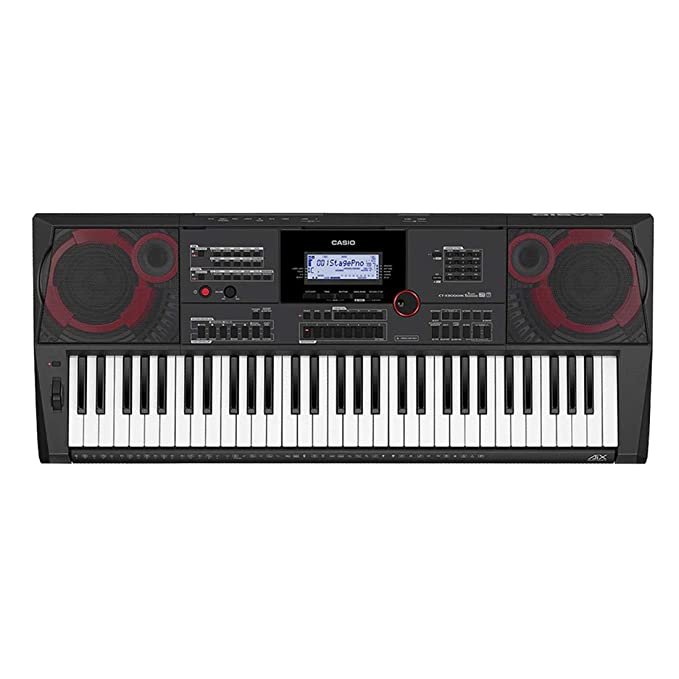

Casio CT-X9000IN Keyboard features a 15W + 15W high-output amp and bass reflex speakers, demonstrating the full potential of the AiX Sound Source.

• 61 keys with Touch Response, 64 Polyphony
• 800 Tones and 235 Rhythms
• 15W?15W

Rich Functionality Supports Your Performance

Accompaniment For the Latest Music Scenes

The extensive library of built-in accompaniment patterns covers a wide range of musical genres, including modern electronic music.

Friendly Interface

Keys for each function are laid out in tile format. Easy to understand operation allows anyone to perform more intuitively.

Direct Select buttons let you choose the most suitable tone and rhythm, especially effective for live performances.

High Performance DSP and System Effects

100 preset types of DSP effect let you alter tones so they sound exactly as you imagined. Includes reverb, chorus and delay system effects. Effects can be adjusted on the fly, so you can give full expression to your music during live performances.

Extensive Registration Functionality Lets You Save Your Favorite Settings

Save up to 128 detailed keyboard setups, including tones, rhythms and tempo. Load and switch between them instantly as and when needed to deliver a gripping stage performance.

Record Phrases and Play Back with Phrase Pads

Record phrases so they’re ready to use at the crucial moment, and play them instantly, at the touch of a button. Easily create tracks which one person alone couldn’t perform, like band or ensemble performances, by recording overdubbed playback from the four phrase pads.

Full Suite of Production Functionality for Composing Your Music

17 track MIDI recorder to record your original music

The keyboard comes with a 16 track + 1 system track MIDI recorder so you can record up to 10 original songs with around 40,000 notes each. It also supports step recording and editing of recorded data. Take advantage of multi-track recording, recording individual instrument parts on separate tracks before bringing the whole piece together.

42 Channel Mixer Combines Multiple Parts At Will

The keyboard has a multi-channel mixer, ideal for mixing down. Refine expression during performances or make fine adjustments to music by controlling tone and effects channel by channel.

User-Created Rhythms

You can create original accompaniment patterns with up to 8 parts. They keyboard also has a full range of editing functions, such as: an easy edit function to create your own rhythm from a built-in one; a real-time recording function for directly entering and saving rhythms; or mixer settings for controlling the balance of each track or effect levels.

Ready for Expansion

Lots of Expansion Ports for Easier Performance, Songwriting and Editing

The keyboard has plenty of ports to connect to computers and audio equipment. You can even play along with music on a connected audio player. There are also assignable jacks for a sustain or expression pedal.

WAV Audio Data Playback

WAV audio files saved onto USB flash memory can be played on the keyboard using the USB TO DEVICE port.

Keyboard

• 61 standard size keys
• Touch Response: Sensitivity 3 types, Off

Maximum Polyphony: 64 notes (32 for certain tones)

Tones

• Preset Tones: 800
• User Tones: 100
• Other: Layer, split (configurable split point, lower point, chord point settings)

System Effects

• Reverb: 32 types, Off
• Chorus: 16 types, Tones
• Delay: 20 types, Tones
• DSP: 100 types (Can be applied to user tones using DSP editing.), DSP tones

Master Effects

• Equalizer (10 presets)
• 4-band User Equalizer

External Input Effects: Center cancel (vocal cut) for input from the Audio In jack

Metronome

• Beat: 0 (accented tone off), 1 to 16
• Tempo: Tempo value: 20 to 255

Demo Songs: 3

Song Bank

• Built-in Songs: 30
• User-recorded Songs: 10
• USB Memory Songs: Playback of standard MIDI files (SMF format 0/1), CASIO MIDI files (CMF format) on a USB flash drive is supported.

USB Audio Playback

• Playback of audio files on a USB flash drive is supported.
• Supported File Formats: WAV format, 44.1 kHz 16 bit
• Other Functions: Center Cancel (Vocal Cut)

Auto Accompaniment

• Built-in Rhythms: 250
• User Rhythms: 100
• One Touch Presets 235

Music Presets: 310 (With chord progressions)

Phrase Pads

• Number of Pads: 4 User
• Phrases: 100 (4 phrases x 25 pads)
• Editing Mode: Copy, delete, phrase editing

Mixer function

• Affected Parts: Sound source parts, microphone input part
• Parameters: Part on/off, volume, pan, reverb send, chorus send, delay send

Registration: Maximum 128 setups (8 setups x 16 banks), registration sequence

Tone Editing

• Preset tone editing, DSP editing
• Memory for storage of edited tones (up to 100)

Rhythm Editing

• New rhythm creation, rhythm editing
• Memory for storage of created/edited rhythms (up to 100)

MIDI Recorder

• Real-time recording, playback
• Keyboard Performance Recording: 10 songs, 17 tracks (1 system track, 16 solo tracks)
• Memory Capacity: Approximately 40,000 notes (per song)
• Editing Mode: Song editing, track editing, event editing, step input
• Other Functions: Overdubbing, punch-in recording

Pedals: Sustain, sostenuto, soft, rhythm/song, expression

Controllers: Pitch bend wheel, SUSTAIN button, PORTAMENTO button, MODULATION/ ASSIGNABLE button

Other Functions

• Transpose: ±1 octaves (-12 to 0 to +12 semitones)
• Octave Shift: Upper 1/Upper 2/Lower 1/Lower 2, ±3 octaves
• Tuning: A4 = 415.5 to 465.9 Hz (Initial Default: 440.0 Hz)
• Part coarse tune: For each keyboard part, ±2 octaves (-24 to 0 to +24 semitones)
• Part fine tune: For each keyboard part, ±99 cents
• Scales: 17 preset scales, scale fine tuning
• Auto Harmonize: 12 types
• Arpeggiator: 150 types

MIDI: 16ch multi-timbre received, GM Level 1 standard

Inputs/Outputs

• USB Flash Drive Port: Type A
• USB Port: Type B
• Pedal 1 Jack: Standard jack
• Pedal 2, Expression Jack: Standard jack
• Headphones Jack: Stereo standard jack
• Audio Input Jack: Stereo mini jack/Input impedance 9 kΩ, Input sensitivity 200 mV
• Line Out Jack: Standard jacks x 2/Output impedance 2.3 kΩ, Output voltage 1.9 V (RMS) MAX
• Microphone Input Jack: Standard jack (Connect a dynamic microphone.)/ Input impedance 3 kΩ, Input sensitivity 10 mV

Power Jack: DC 24V

Speakers: 10cm x 2 (Output: 15W + 15W)

Power Consumption: 15 W

Dimensions: W 94.8 x D 38.4 x H 11.6 cm
