No-compromise professional studio quality & features at an amazing value!

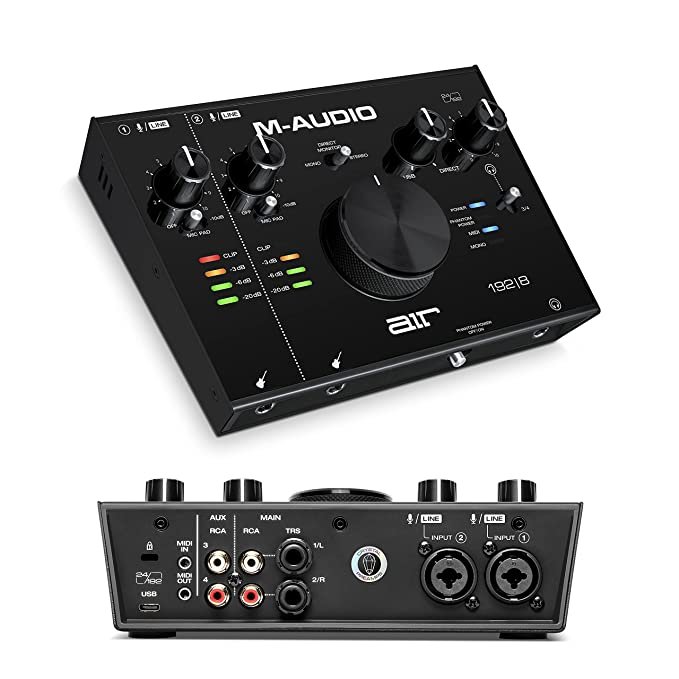

With the AIR 192|8, you can create 24-bit/192kHz studio-quality recordings with an intuitive & easy-to-use audio interface. The AIR 192|8’s flexible inputs enable you to record up to 2 channels at once with its 2 dedicated XLR+¼” balanced combo inputs with switchable -10dB mic pad, & 2 all-new ¼” instrument inputs that have a specially designed gain & impedance stage to provide the most accurate representation of a guitar or bass plugged directly into the interface. The (2) ¼” & (4) RCA outputs with USB/Direct control, & Direct Mono/Stereo switch provide multiple output options for connecting to outboard gear, DJ mixers, or studio monitors. The headphone output with independent level, USB/Direct, & switchable 1/2 or 3/4 audio stream controls are perfect for discretely listening to a cue mix, sub mix, or main mix. MIDI In & Out connections are included for connecting synths, sequencers & external MIDI gear.
FEATURES
- 24-bit/192kHz resolution for professional recording & monitoring
- Hi-Speed USB circuitry for fastest connection, with class-leading round-trip latency of 2.59ms*
- Transparent Crystal™ preamps & ultra-pristine A/D converters for unsurpassed audio recording quality
- VU LED meters for dialing in the perfect level
- Flexible inputs: (2) XLR+¼” TRS combo with -10dB mic pad or ¼” instrument inputs
- Use any combination of TRS combo or ¼” instrument input on the two channels:(2) TRS, (2) instrument or (1) of each
- MIDI input/output for connecting virtually any external MIDI gear
- Stereo ¼” & RCA outs with direct mono/stereo switch
- (2) RCA assignable auxiliary outputs; ¼” headphone output with independent source & level controls
- Rugged metal chassis; large central control for easy volume adjustment
- USB/Direct knob for balancing between the input signal & the computer signal
- *Round trip latency is dependent on buffer settings, & computer hardware
Computer ConnectivityUSB 2.0Form FactorDesktopSimultaneous I/O2 x 4Number of Preamps
2 x mic, 2 x instrument |
Phantom Power
Linked Ch 1/2 |
A/D Resolution24-bit/192kHzAnalog Inputs2 x XLR-1/4" combo (mic/line)Analog Outputs2 x 1/4" TRS (main L/R), 1 x Dual RCA Stereo (main out), 1 x Dual RCA Stereo (aux out)Headphones1 x 1/4"MIDI I/O
1 x 1/8" (In), 1 x 1/8" (Out), USB |
USB1 x Type USB-CSoftwarePro Tools First, Ableton Live Lite, 20 Effect Plug-insOS Requirements - MacOS X 10.8.5 or laterOS Requirements - PCWindows 7 SP1 or laterPower SupplyUSB bus poweredHeight
2.76" |
Width7.80"Depth6.0"Weight1.98 lbs.
