OVERVIEW
Charvel® once again reaches new heights of modern high performance combined with elegant style and crushing tone with the Pro-Mod DK24 HSS 2PT CM, a stunning new instrument designed especially for a new breed of player whose musical vision and versatility knows no boundaries.
|
The sleekly sculpted alder Dinky™ body features a scalloped lower back bout and shredder’s cut heel that make access to the upper registers seamless. |
|
The bolt-on caramelized maple “speed” neck has graphite reinforcement, a silky-smooth hand-rubbed urethane finish on the back, Luminlay® side dots and heel-mount truss rod adjustment wheel. Its 12”-16” compound radius caramelized maple fingerboard features comfortable rolled edges, 24 jumbo frets, pearloid dot inlays and Graph Tech® TUSQ® XL nut. |
|
Incredibly full and versatile tone comes from an HSS pickup configuration consisting of a custom Seymour Duncan® Full Shred™ TB-10 bridge pickup, Seymour Duncan Custom Flat Strat® SSL-6 single-coil middle pickup and Seymour Duncan Custom Flat Strat SSL-6 RWRP single-coil neck pickup. The humbucking bridge pickup sings with incredibly bright clarity, while the middle and neck pickups are the perfect blend of increased output and springy Stratocaster attitude. |
|
Taking our modern DK24 platform up a notch, this model's premium modern features include a five-way blade pickup switch, Stratocaster®-style skirt knobs for the volume (with 500K EVH® Bourns® low friction potentiometer) and no-load tone controls, Gotoh® Custom 510 tremolo bridge, Charvel-branded locking tuners and more. Sporting sophisticated style, the Pro-Mod DK24 HSS 2PT CM is dressed in either a classic Satin Shell Pink finish with chrome hardware, or in Snow White with gold hardware. |
GENERAL
- Model Number 2969433519
- Series Pro-Mod
- Color Satin Shell Pink
- Number of Strings 6
- Orientation Right-Hand
BODY
- Body Finish Satin
- Body Shape Dinky™
- Body Material Alder
NECK
- Neck Material Caramelized Maple
- Neck Construction Bolt-On with Graphite Reinforcement
- Neck Finish Hand-Rubbed Satin Urethane
- Neck Shape Speed Neck with Rolled Fingerboard Edges
- Neck Binding None - Rolled Fingerboard Edges
- Scale Length 25.5" (648 mm)
- Fingerboard Radius 12"-16" Compound Radius (304.8 mm to 406.4 mm)
- Fingerboard Material Caramelized Maple
- Number of Frets 24 Fret
- Size Jumbo
- Nut Material Graph Tech® TUSQ® XL
- Nut Width 1.6875" (42.86 mm)
- Position Inlays 4mm Pearloid Dot
- Truss Rod Nut Heel-Mount Truss Rod Adjustment Wheel
- String Trees Fender® Standard String Guide
- Headstock Licensed Fender® Stratocaster®
- Neck Plate None - 4-Bolt Sculpted Heel
HARDWARE
- Bridge Gotoh® Custom c
- Hardware Finish Chrome
- Tremolo Arm Gotoh®
- Tuning Machines Charvel®-Branded Die-Cast Locking
- Pickguard None
- Control Knobs Stratocaster®-Style Skirt
- Switch Tip Parchment
ELCTRONICS
- Bridge Pickup Custom Seymour Duncan® Full Shred™ SH-10B
- Middle Pickup Seymour Duncan® Custom Flat Strat® SSL-6 Single-Coil
- Neck Pickup Seymour Duncan® Custom Flat Strat® SSL-6 RWRP Single-Coil
- Pickup Color Flat Parchment
- Controls Volume (500K EVH® Bourns® Low Friction Pot), No-Load Tone
- Pickup Switching 5-Position Blade: Position 1. Full Bridge Pickup, Position 2. Bridge Inner Coil and Middle Pickup, Position 3. Bridge Outer Coil and Neck Pickup, Position 4. Middle and Neck Pickup, Position 5. Full Neck Pickup
- Pickup Configuration HSS
MISCELLANEOUS
- Strings Nickel Plated Steel (.009-.042 Gauges)
- Strap Buttons Standard
- Other Features Luminlay® Side Dots
| Body Shape | Dinky |
| Body Material | Alde |
| Body Finish | Satin |

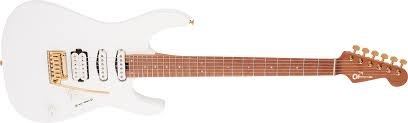

| Color | Snow White |
| Neck Material | Caramelized Maple |
| Neck Shape | Speed Neck |
| Radius | 12"-16" |
| Neck Joint | Bolt-on |
| Fingerbard Material | Caramelized Maple |
| Fingerboard Inlays | Pearloid Dot |
| Number of Frets | 24 |
| Scale Length | 25.5" (648 mm) |
| Nut Material | Graph Tech |
| Bridge / Tailpiece | 510 Tremolo |
| Tuners | Locking |
| Neck Pickup | Custom Seymour Duncan |
| Middle Pickup | Seymour Duncan® Custom |
| Bridge Pickup | Seymour Duncan® Custom |
| Pickup Layout | HSS |
| Controls | Volume, Tone |
| Switching | 5-Position Blade |
| Strings | .009-.042 |
| Case | Gig Bag(RM) |
